Custom Hydraulic Cylinder
Providing durable and reliable custom cylinders for your unique projects. With advanced equipment and professional engineers, we have provided custom cylinders to more than 70 countries.
We offers Varies of Custom Hydraulic Cylinder
Choose the right custom hydraulic cylinder type to meet your specific application.
Hydrualic Cylinder Made to your application

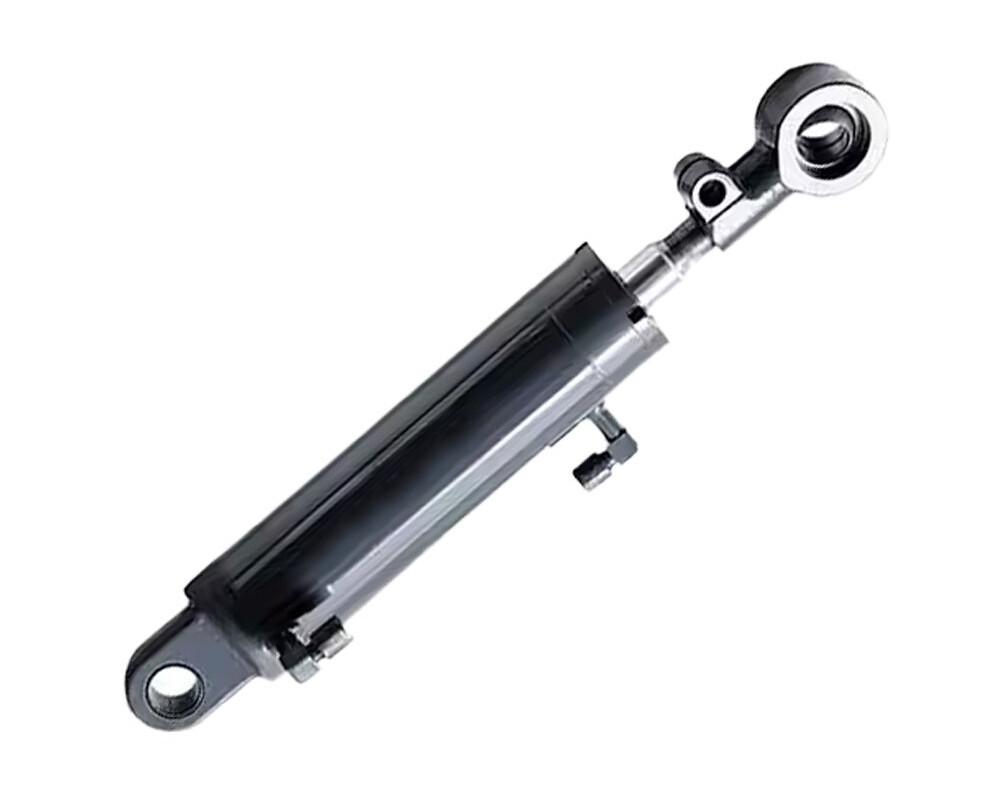

Single-Acting Hydraucli Cylinder
Custom-made single-acting hydraulic cylinders offer low-maintenance solutions compatible with various types of machinery. These cylinders commonly extend by applying pressure to one side of the piston and retract using gravity. Single Acting Cylinder are widely used for food processing, industrial manufacturing, and other markets, single-acting designs provide reliable performance across diverse applications.

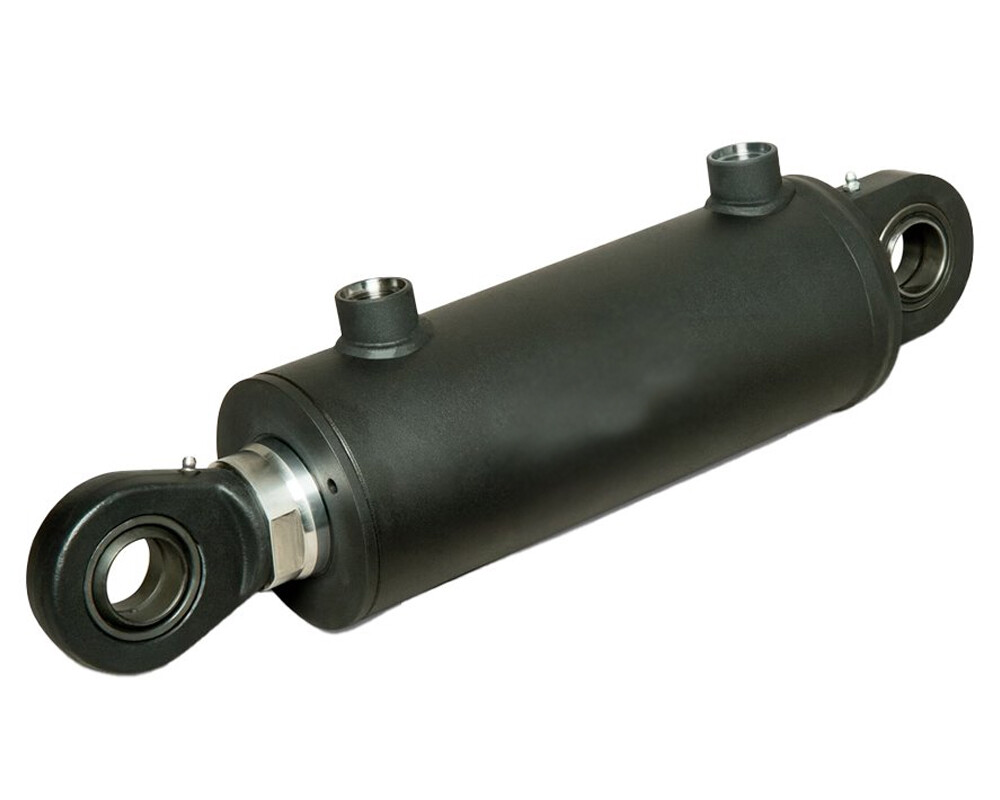

Double-Acting Hydraulic Cylinder
Double-acting hydraulic cylinders are a versatile alternative to single-acting designs, utilizing hydraulic fluid on both sides of the piston for a more controlled retraction process. Custom-made double-acting hydraulic cylinders are perfect for applications requiring force during both extension and retraction, such as in industrial, mobile, or construction equipment.
Heavy-Duty Hydraulic Cylinder
Heavy-duty machinery demands robust solutions. Our custom-made heavy-duty hydraulic cylinders, available in single-acting or double-acting designs, are tailored to meet your specifications. With operating pressures rated up to 5,000 psi, these cylinders are engineered to withstand the tough conditions of marine or offshore equipment, forestry applications, mining operations, and more.
Typical design features of hydrualic cylinder
Support fully customized cylinder design, from materials to sketches to accessories, you can have an ideal product to improve your work efficiency
Hydraulic Cylinder Model Number
Usually, there are three key parameters included in the hydrualic cylinder model number. Using them proporly can help you find the right cylinder quickly.

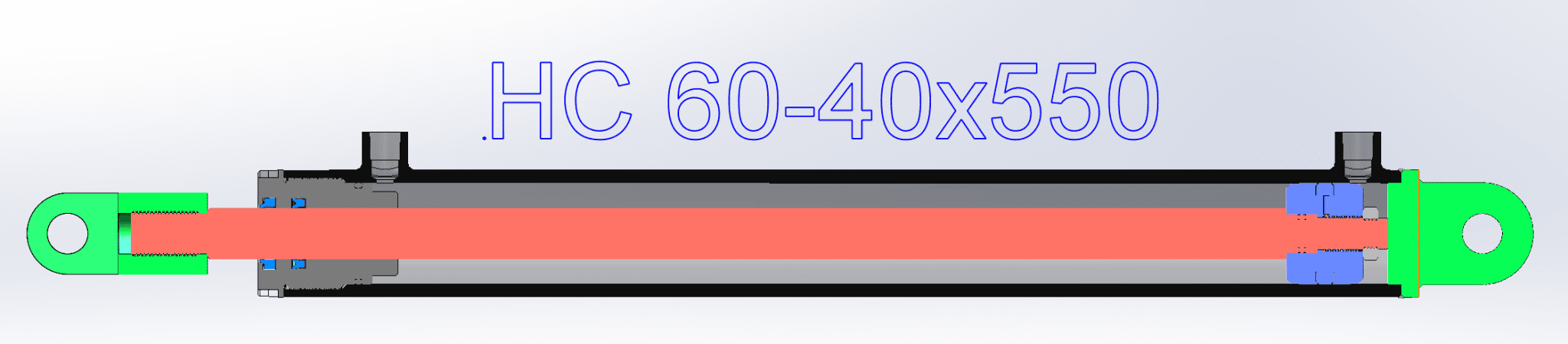

A cylinder named as HC60-40×550 usually means the diameters of bore and rode are 60 and 40 mm, with a stroke length of 550mm. These numbers may varies in different meter system, but those numbers are the most important meters in a stanard welded hydraulic cylinder.
Base and Rod Mount
Mounts are typically at the ends of a hydraulic cylinder. They are used for fixing the cylinder on equipments. Mounts are usually welded to the end cap and rod head, impoving durability and strengh. Some are equiped with bushing and bearings in the pin bore to have better motion performance. offers multiple mount type for custom hydraulic cylinder, design and product accroding to the actual working condition.
Threaded Head Gland
Glands are using for holding seals and limiting the travel of hydraulic cylinder rod. With ductile iron ensuring the strenghness and durability.
Rod
The rod travels and extends from the head of cylinder. Hydraulic fluid pushes rod to move, supplying force to equipment.
Because the rod are always in moving, its quality are vital to the cylinder. Are built with high-strength steal and Chrome-plated to have both toughness and smoothness charactors. We can provide custom chrome-plated thickness to meet your requirements.
Tube / Barrel
Hydraulic cylinder barrels house the piston and piston rods, being sealed at one end by a cap and at the other by a gland. Also referred to as the tube, the barrel endures harsh conditions and rugged demands in any application.
Oil Port
There are many standards for oil ports and choosing right port are important for your custom hydraulic cylinder. Oil ports have effects on the oil speed and pressure. It controls the flow of hydraulic power.
End Cap
Hydraulic cylinder tubes house the piston and piston rods, being sealed at one end by a cap and at the other by a gland. Also referred to as the tube, the barrel endures harsh conditions and rugged demands in any application.
